Glass fittings for doors and assemblies
Save the lightness of the interior!
Glass applications demand a special type of hardware.
To meet this demand, DORMA has developed a range of glass fittings for interior swing doors.
These unobtrusive fittings create the perfect ambiance that are both functional and dependable aligning with the needs of glazing construction and their users.
Mundus - NEW!!!
Mundus - NEW!!!
- Clean design, with no visible fixings
- Fast installation, easy to adjust - multi-dimensional adjustment even after mounting
- Always fits - Flexible settings for a range of glass thicknesses (8-22mm)
- Wide range of finishes, colours and high-quality materials
- Suitable for laminated safety glass
- Longer life span with 1,000,000 movement cycles

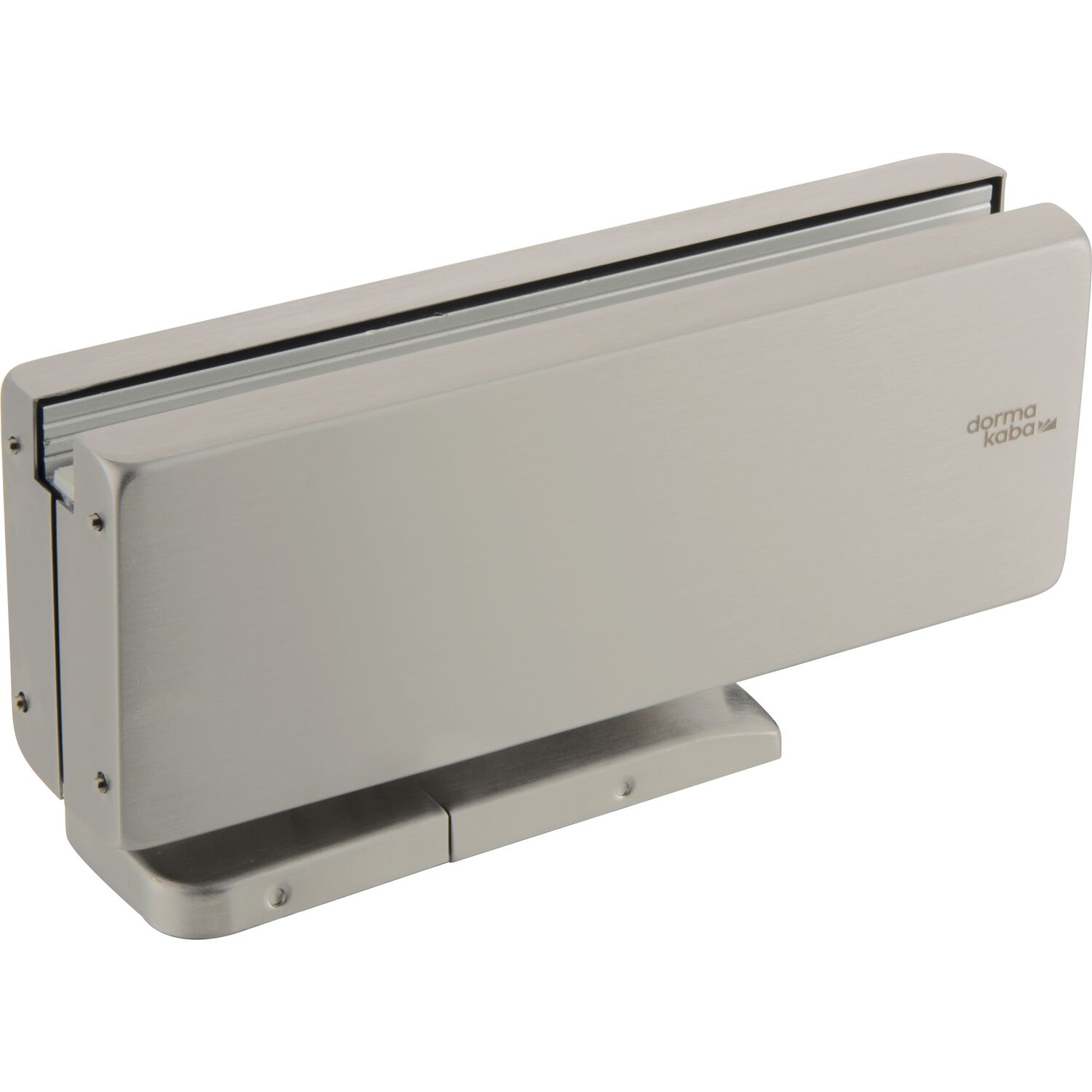

Universal Motion - self-closing
Universal Motion - self-closing
- Glass thickness: 10 + 12 mm
- Door width: max. 1,000 mm
- Door weight: max. 100 kg
- Surface finishes: Stainless steel and aluminum
- Variants: With / without 90° door held open
Arcos Studio
Dorma Arcos Studio glass door fittings
- Combine high functionality with aesthetic design
- Adjustable lever handle follower
- Fully sealed lock case
- Locks comply to DIN 18 251, Class 3
- With low-noise functionality (silent pattern)
Arcos Office
Dorma Arcos Office glass door fittings
- Combine heavy-duty functionality with aesthetic design
- Adjustable lever handle follower
- Fully sealed lock case
- Locks comply with current DIN EN 12209 requirements
- With low-noise functionality (silent pattern)
Studio Rondo
Dorma Studio Rondo fittings
- Simple glass preparation
- Firm fixing
- Reliable operation
- Extensive range of finishes and colours
Studio Classic
Dorma Studio Classic fittings
- Simple glass preparation
- Firm fixing
- Reliable operation
- Extensive range of finishes and colors
Studio Gala
Dorma Studio Gala swing door fittings
- Simple glass preparation, firm fixing
- Reliable operation
- Various surface finishes and lever handle types available
Junior Office
Dorma Junior Office fittings
- Maximum door weight 60 kg
- Lock design, europrofile, warded, WC, KABA, or no lock
- Design: 1- / 2-panel, side panel
- Reliable under heavy use
- Low-noise function (silent pattern)
- Adjustable handle position
Junior Offfice Classic
Dorma Junior Office Classic fittings
- Meet all aesthetic and budget requirements
- Simple glass preparation
- Extensive line of housings and handles
- Firm fixing
- Reliable operation
TP/TA
Dorma TP/TA door rails
- For heavy-duty and wide doors
- Special security and quality features
- Easy door adjustment
- Reliability buit in
- Short delivery times
RP
Dorma RP pivot door system
- Modular system
- Innovative design and quality material
- RP Header System incorporates concealed overhead door closer
- Special damping system to protect the door against unwanted impact
- Integral hold open function
EA
Dorma EA patch fittings
- Easy glass preparation, secure fixing
- Suitable for 8, 10 and 12 mm glass thicknesses
- Reliability built in
- Matching range of locks
- Virtually unlimited choice of colors and finishes
- Short delivery times
Tensor
Dorma Tensor
- . Versions for wall and frame fixing and also fixing to a glass side
- panel
- . Hold-open at 90° related to the zero position
- . Max. door panel weight 65 kg
- . Max. door panel width 1,000 mm
- . For 8, 10 and 12 mm glass (TSG)
- . TÜV-tested/third-party verification with respect to quality
- and the production process; with confirmed completion of
- 500,000 operating cycles
Beyond
Dorma Beyond - Anti-Pinch Door System
- Secure, safe and functional
- Enables building of frameless glass swing doors
- Variety of options
- Prevents the risk of trapped fingers
Manet
Dorma Manet
- Flexible modularity
- Available for several glass thicknesses
- Minimalist appearance
- Creation of light, space and vision
